Garvee Cylinder Leak Down Tester Engine Compression Diagnosis Kit Dual Pressure Gauges Universal Fitment for Gasoline Engines

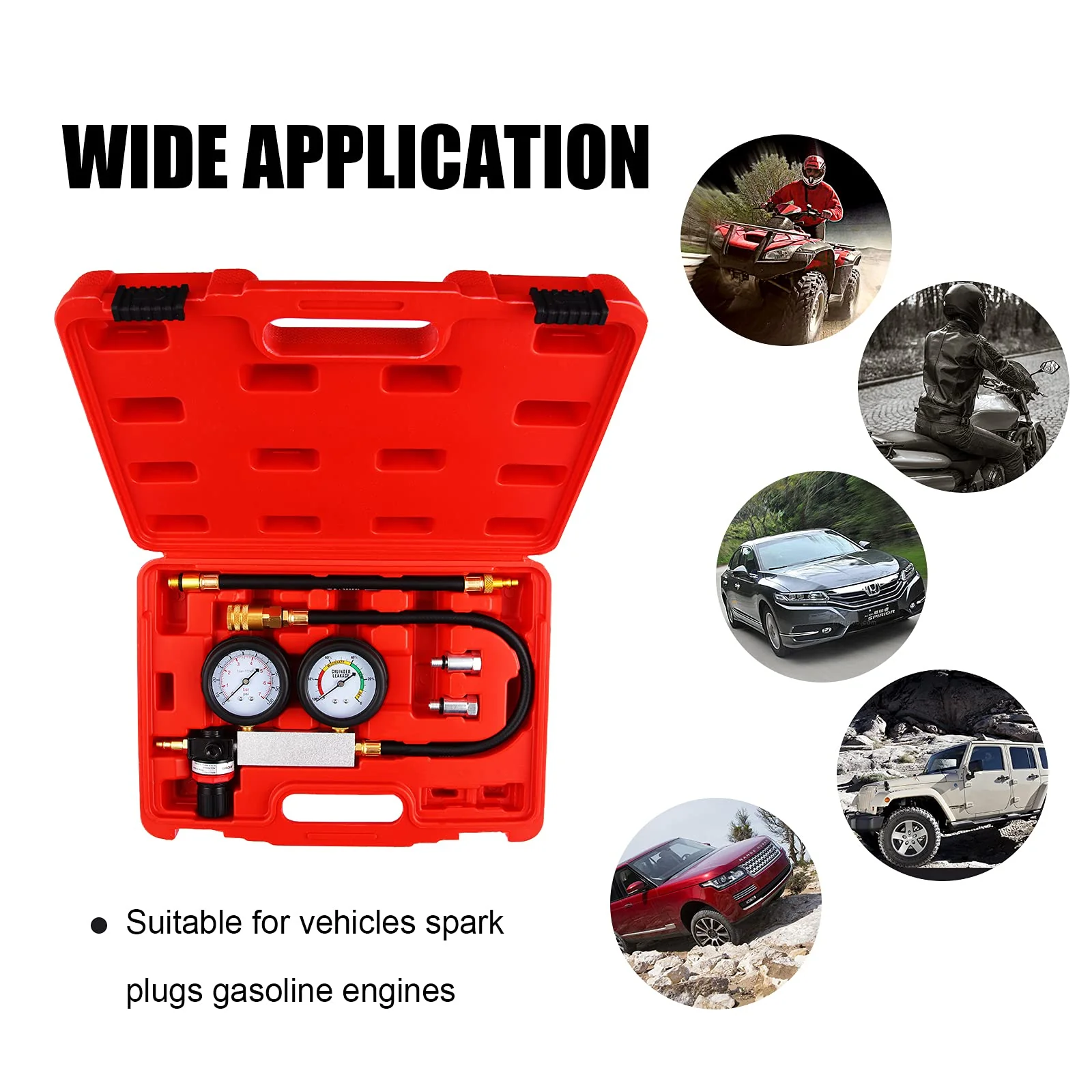

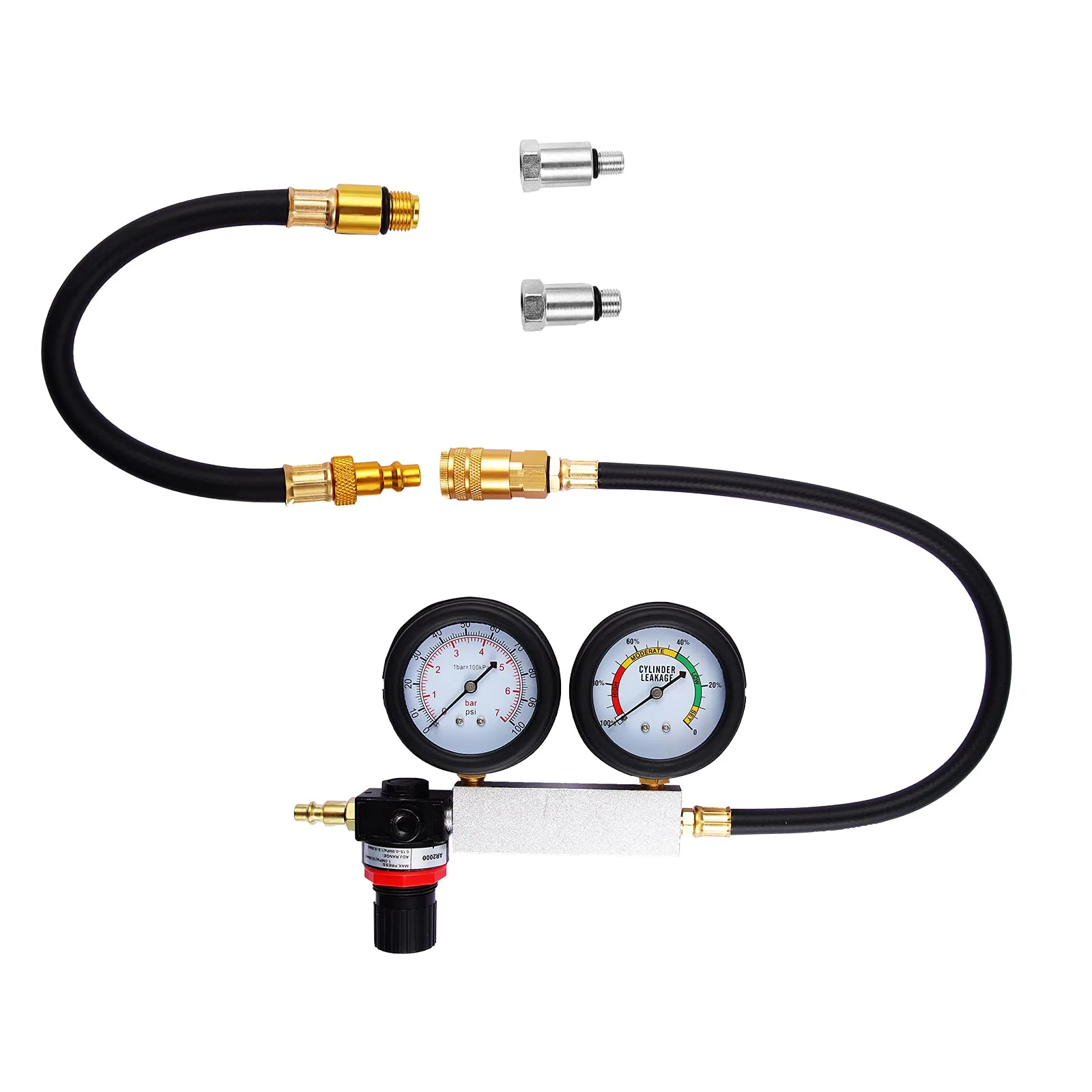

PACKING LIST
1x Dual Gauges Assembly with 19" Hose and American Style Air Plug
1x 10" Rubber Nylon Resin Hose with 14mm Brass Coated Aluminum Adapter
1x 10mm Aluminum Adapter with O-ring
1x 12mm Aluminum Adapter with O-ring
1x Detailed Instruction
1x Customized Blow Molding Case, 13-1/2"L x 9-1/2"W x 3-1/4"H

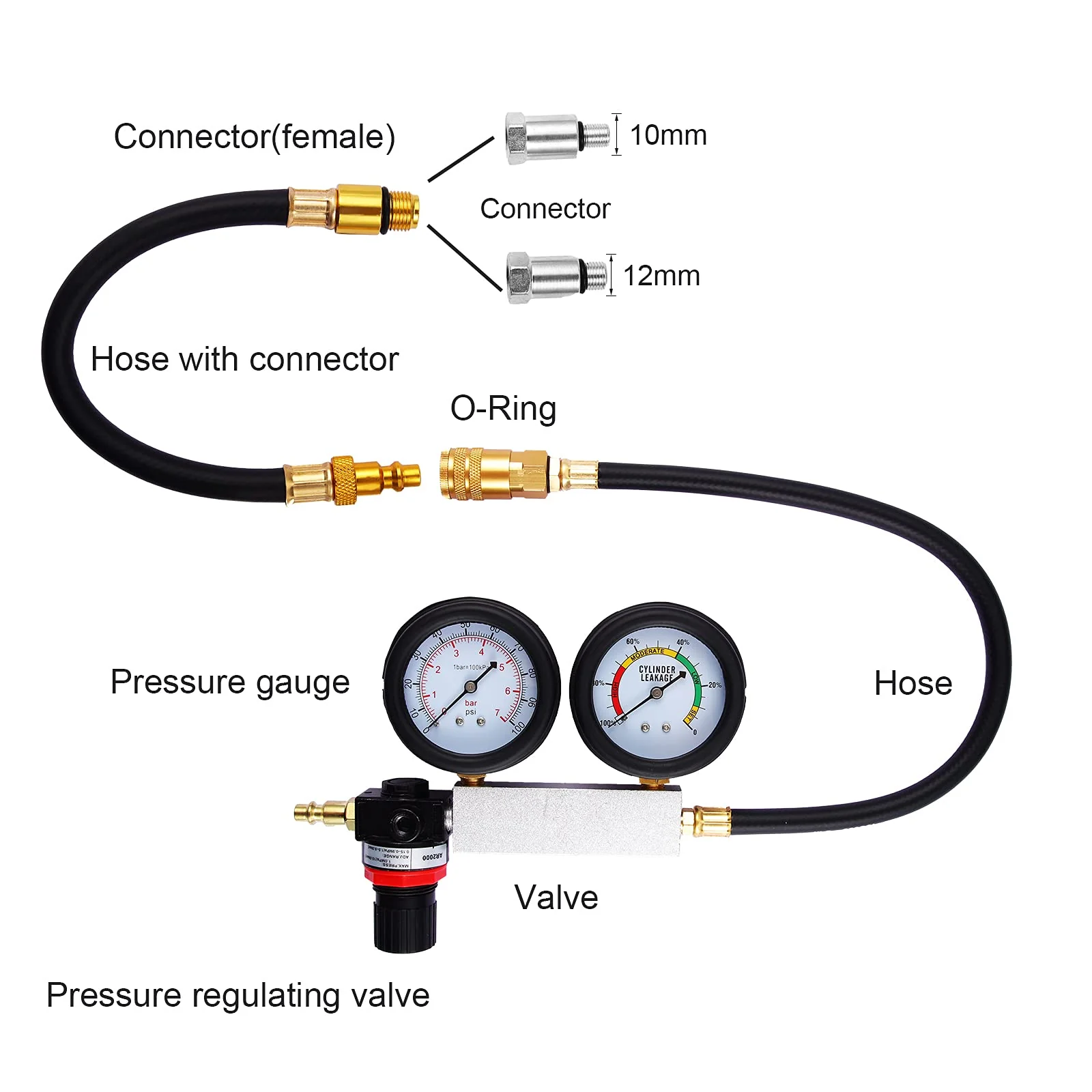

DUAL GAUGES ASSEMBLY WITH HOSE
Available with either single gauge shows % of cylinder leakage, or twin gauge manifold show cylinder leakage and cylinder pressure.
American Style Air PlugAir Regulator ValveManifold BodyCylinder Pressure Gauge, 0-100psi/0-7barCylinder Leakage Gauge, Marked HIGH MODERATE LOW SET19" Rubber Nylon Resin HoseBrass Quick Coupler

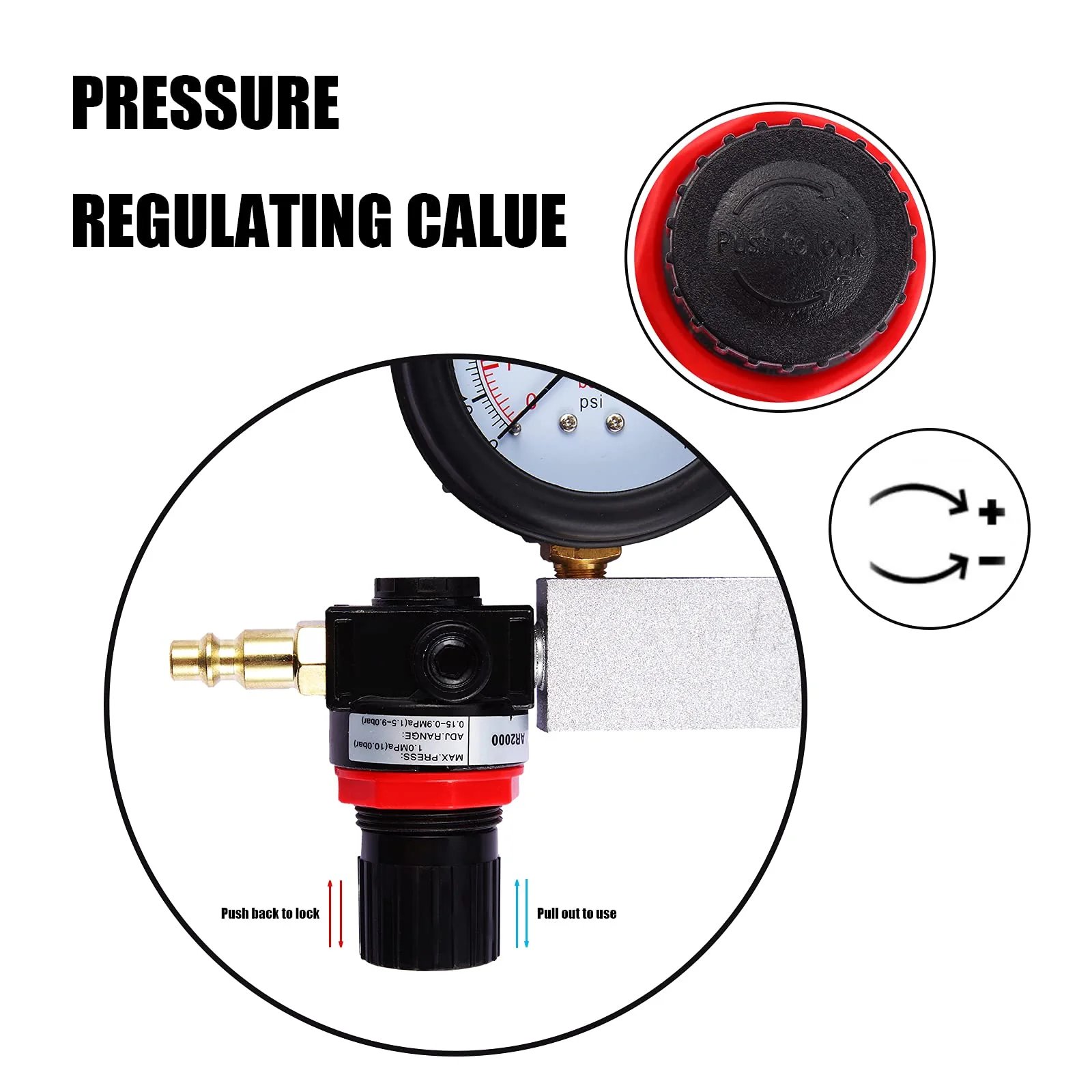

PRESSURE REGULATING VALVE
Pull out to usePush back to lockClockwise twist to increase air supplyAnticlockwise twist to reduce air supplyTurn regulator knob fully anticlockwise before connecting to compressed air.

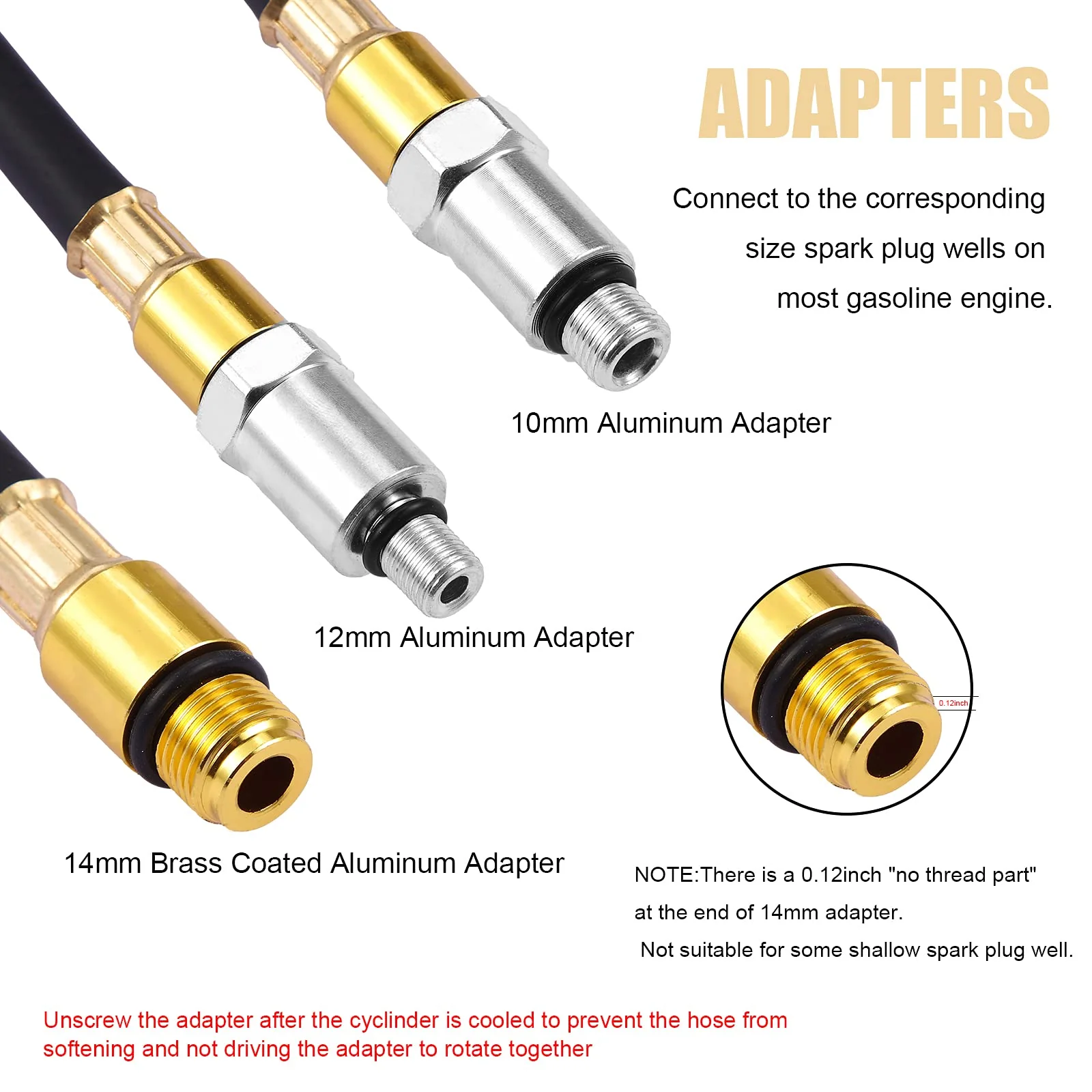

ADAPTERS
Connect to the corresponding sizes spark plugs on most gasoline engine
14mm Brass Coated Aluminum Adapter14mm Brass Coated Aluminum Adapter + 12mm Aluminum Adapter14mm Brass Coated Aluminum Adapter + 10mm Aluminum Adapte
Specifications
| Package Dimensions | 13.62 x 13.03 x 3.23 inches; 3.15 Pounds |
